Double-Swing Gate Opener Standard Kit – 800kg Capacity

Available with other options:
Sorry! This product is currently out of stock.
$609.95
Maximum quantity available reached.
Available with other options:
See what customers say about shopping with FactoryFast.
Trustpilot
Product Description

Automate your gates with this practical double-swing gate opener, rated for gates up to 800 kg combined or up to 400 kg per gate. This adjustable opener has auto-close timing from 0 to 99 seconds and can be controlled remotely from up to 30m away. The opener also features a stop-and-reverse mode in case of obstruction. You also get an emergency key for manual operation during a power failure.

Key Features

  • Gate Weight and Width Capacity
    Handles up to 400 kg per gate and 800 kg combined, with support for gates up to 5.5 m wide at 100 kg per gate.
  • Stop-and-Reverse Mode
    If an obstruction is encountered, the opener can stop and reverse its movement.
  • Adjustable Auto-Close and Motor Operation Times
    Fine-tune operation with auto-close settings from 0–99 seconds and a maximum motor run time adjustable from 0–50 seconds.
  • Customisable Master and Slave Opening Interval
    Set the delay between the master and slave gates opening to better suit the sequence of your two-gate setup.
  • Soft and Smooth Opening and Closing
    Soft, smooth movement gives each opening and closing cycle a more controlled feel.

Ideal For

  • People who want to automate their double-swing gates
  • Homeowners who prefer remote-controlled gate operation
  • Small businesses that need adjustable automatic gate closing
  • Two-gate setups that need customised master and slave opening intervals
  • Double-swing gates weighing up to 800 kg combined

This Standard Kit gives you automatic operation for two swing gates, with adjustable auto-close timing and remote operation from up to 30m away.

Specifications

  • Input: 230V/50Hz
  • Voltage: 24V DC
  • Power: 50W per actuator
  • Current: 2 amps
  • Actuator Speed: 16mm/s

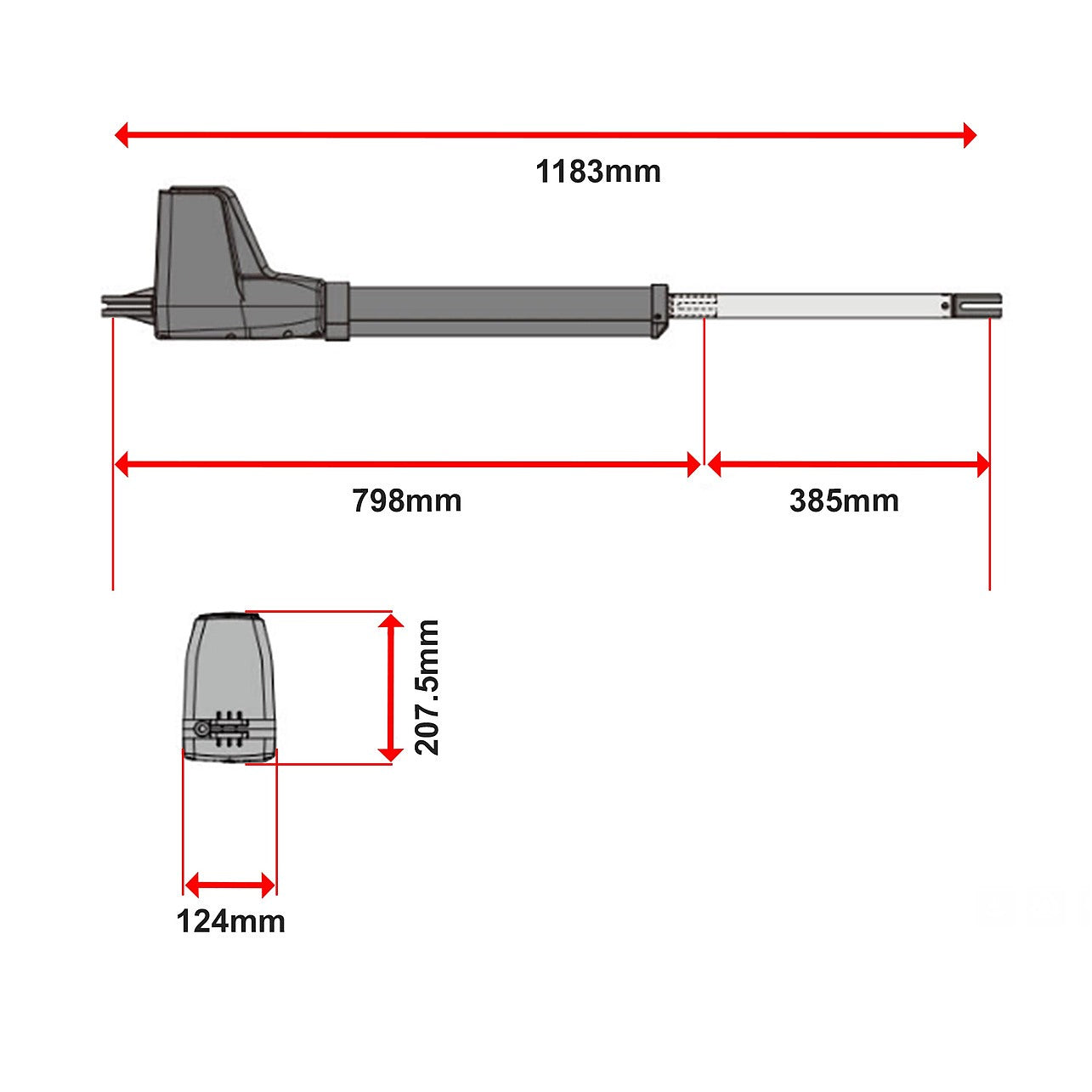

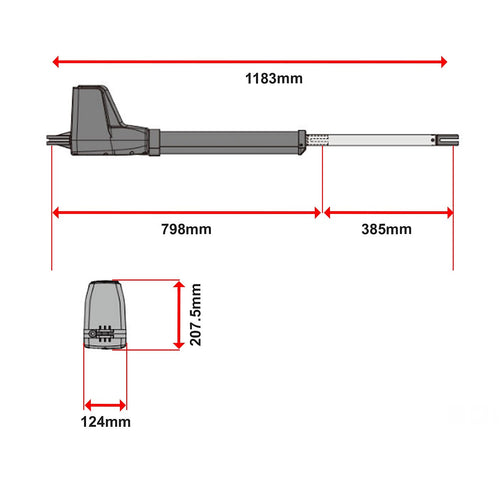

  • Maximum Travel: 385mm
  • Maximum Weight per Gate: 400kg
  • Maximum Combined Gate Weight: 800kg
  • Maximum Gate Width: 5.5m per gate when supporting a 100kg gate
  • Protection Class: IP44
  • Remote Control Battery: A27 12V
  • Remote Control Range: 30m

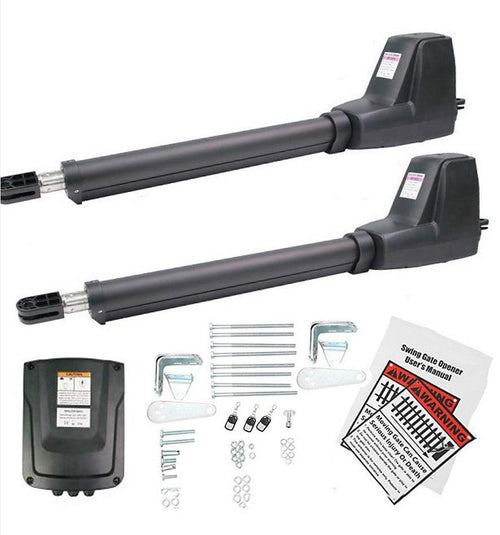

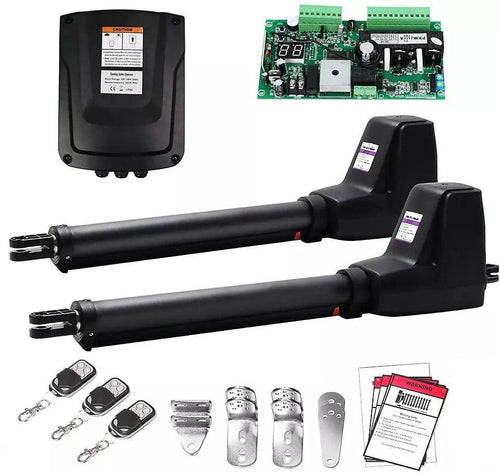

  • Included: 3 remote controls, emergency key and user manual
  • Gates: Not included

Note: A licensed electrician must complete the assembly.
