210W Solar Bore Pump 36V DC Submersible Well Pump 77m Head
See what customers say about shopping with FactoryFast.

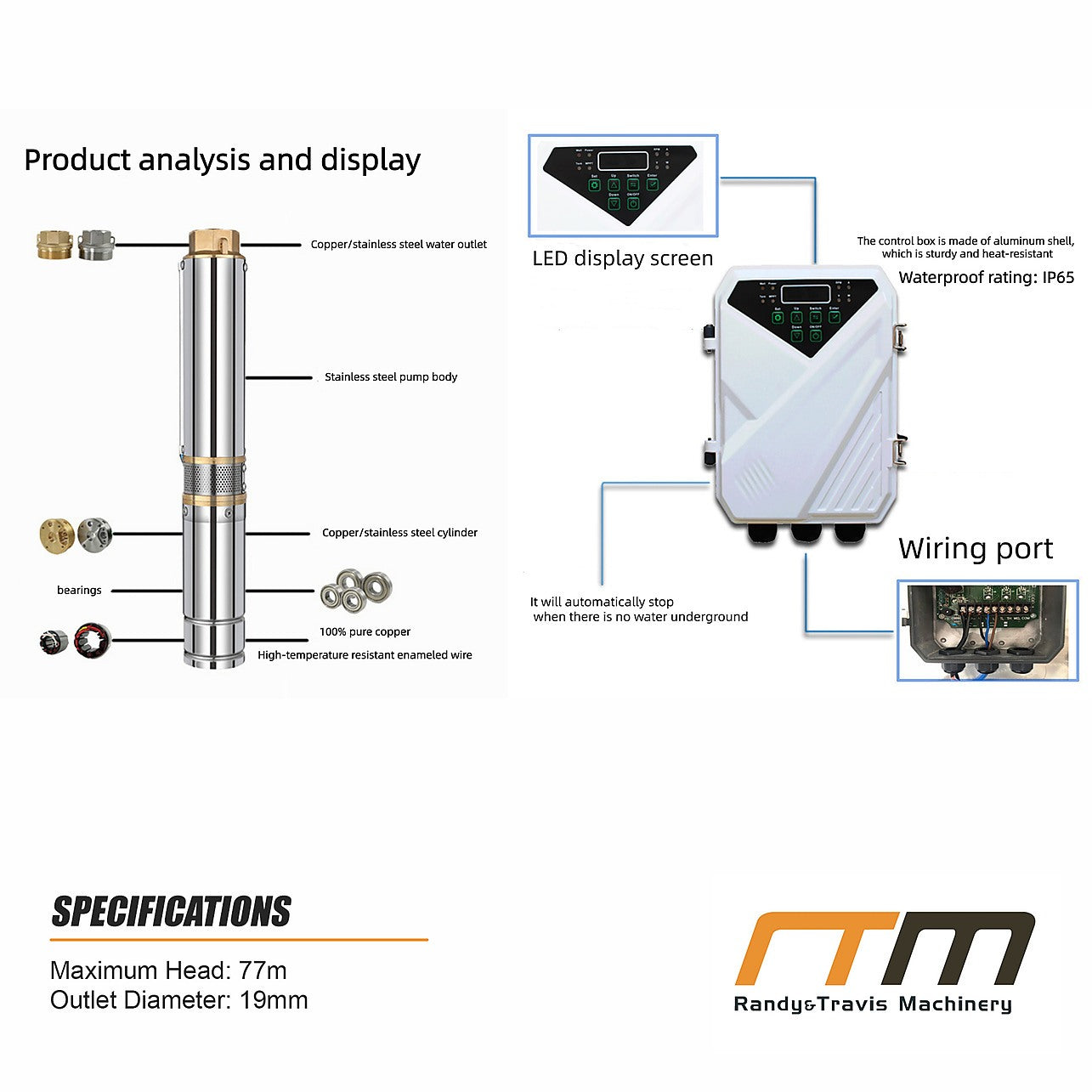

Product Description
Designed for off-grid water transfer, this 210W Solar Bore Pump combines a brushless DC motor, MPPT controller and durable stainless steel construction for reliable bore water pumping. Suitable for deep wells, irrigation systems and remote water supply applications, it delivers a maximum flow rate of 1.2 m³/h and a maximum head of 77 metres.
Constructed from corrosion-resistant 304 stainless steel, the pump includes a pre-fitted 30 metre waterproof submersible cable and an intelligent MPPT controller to optimise solar power input under varying sunlight conditions.
Built for off-grid water pumping, this Solar Bore Pump provides a practical solution for bore water supply, irrigation and rural property applications.
Key Features:
-
210W Brushless DC Motor
Efficient brushless motor designed for solar-powered water pumping applications. -

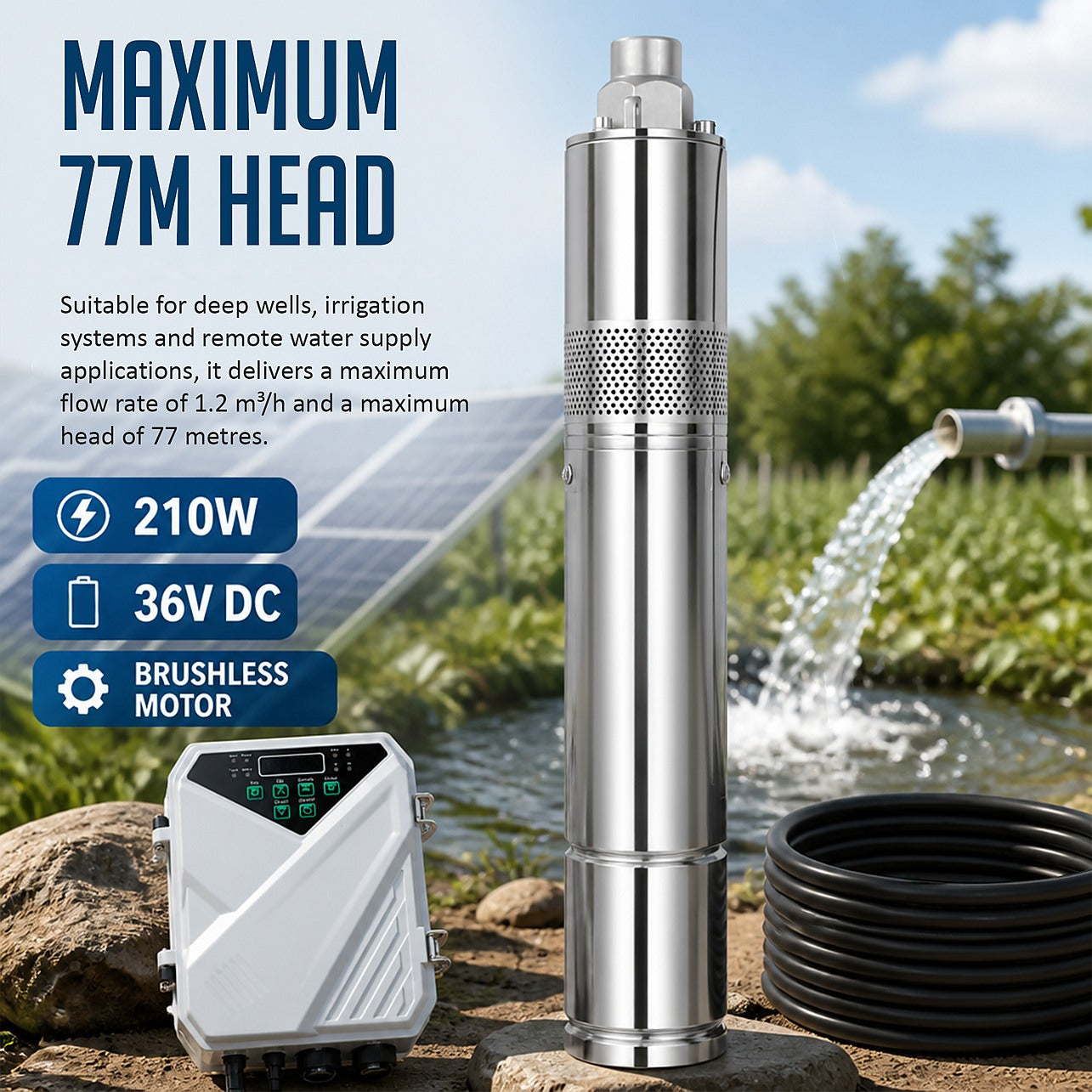

Maximum 77m Head
Suitable for deep bore and well installations requiring higher lift performance. -
Maximum Flow Rate 1.2m³/h
Delivers up to 1,200 litres per hour under suitable operating conditions. -

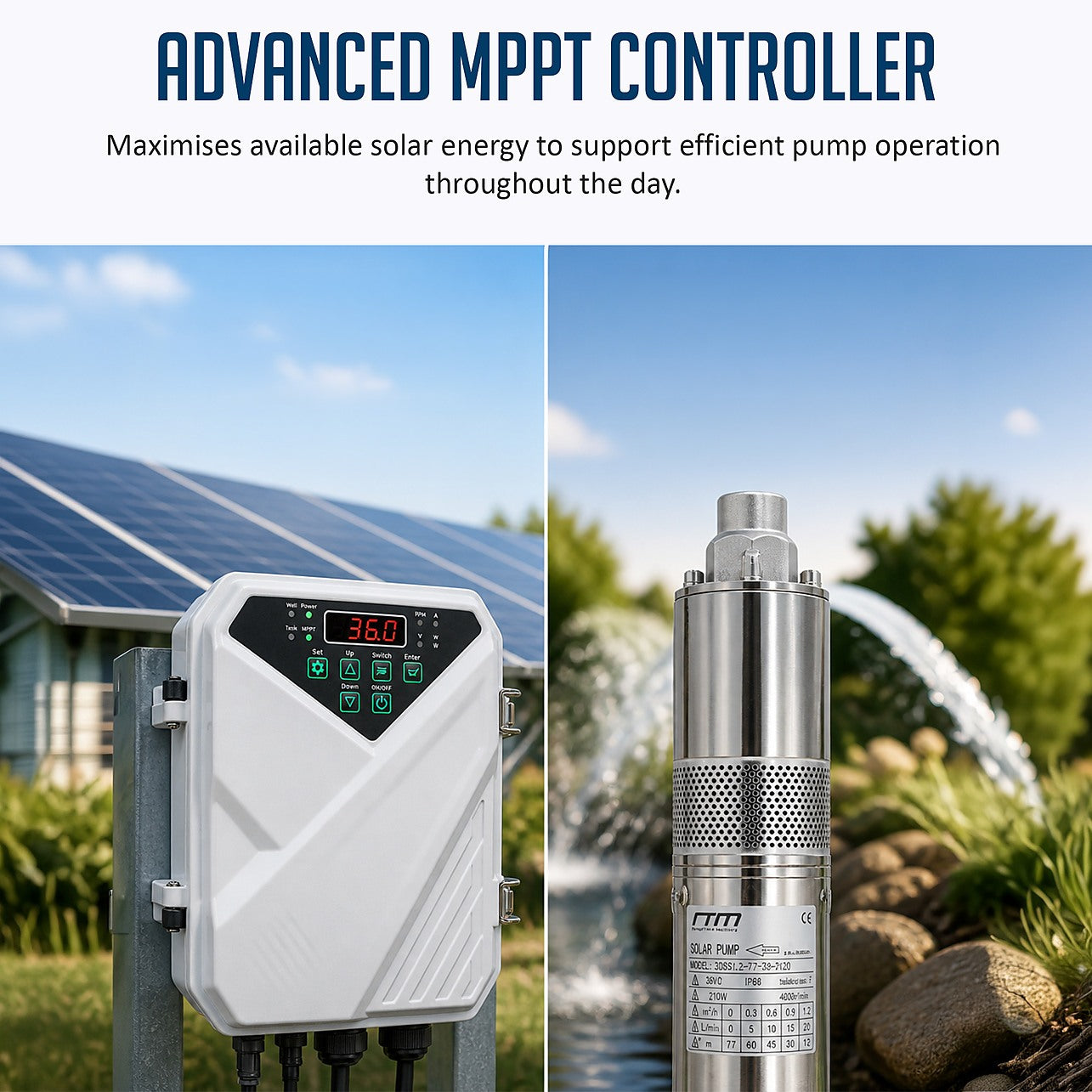

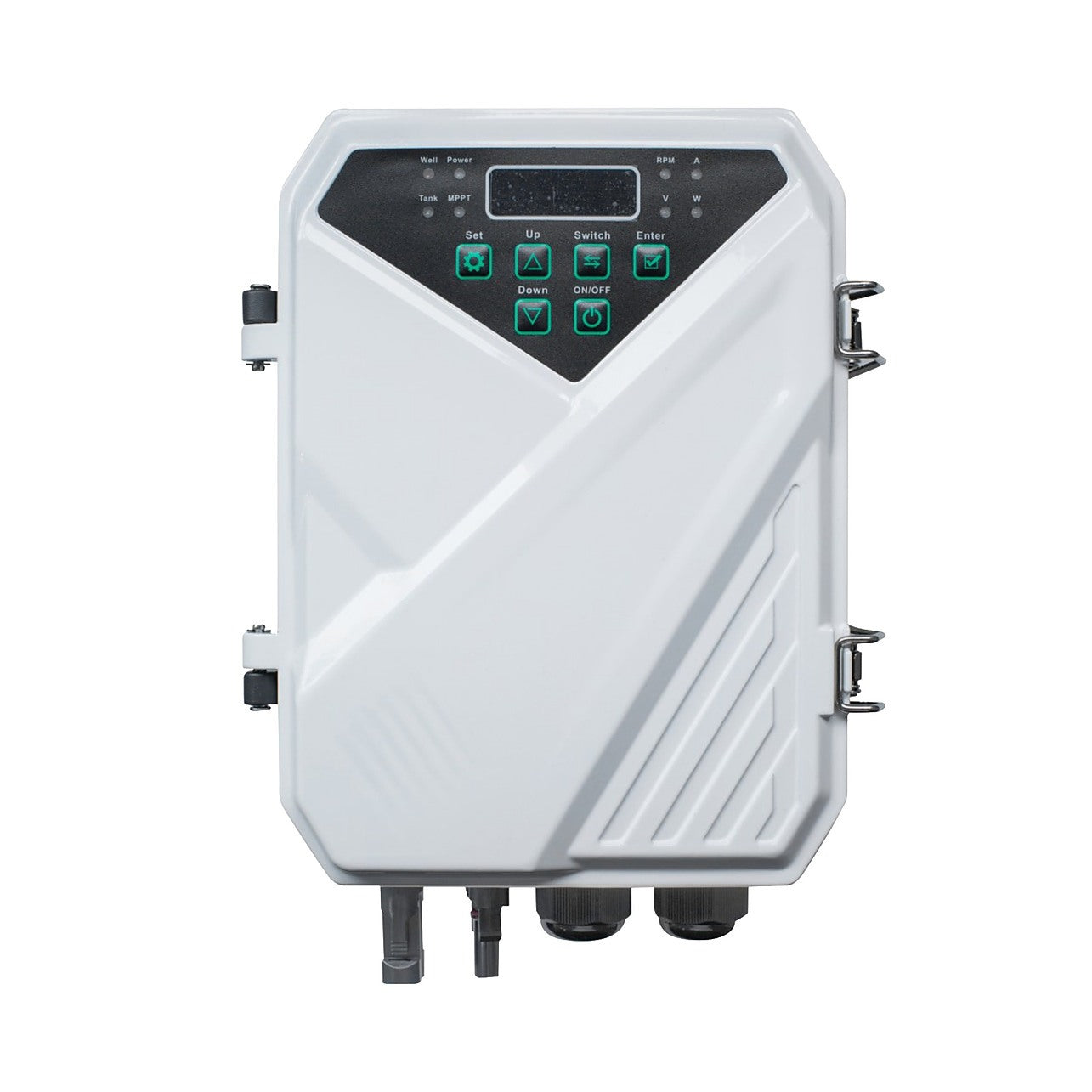

Advanced MPPT Controller
Maximises available solar energy to support efficient pump operation throughout the day. -

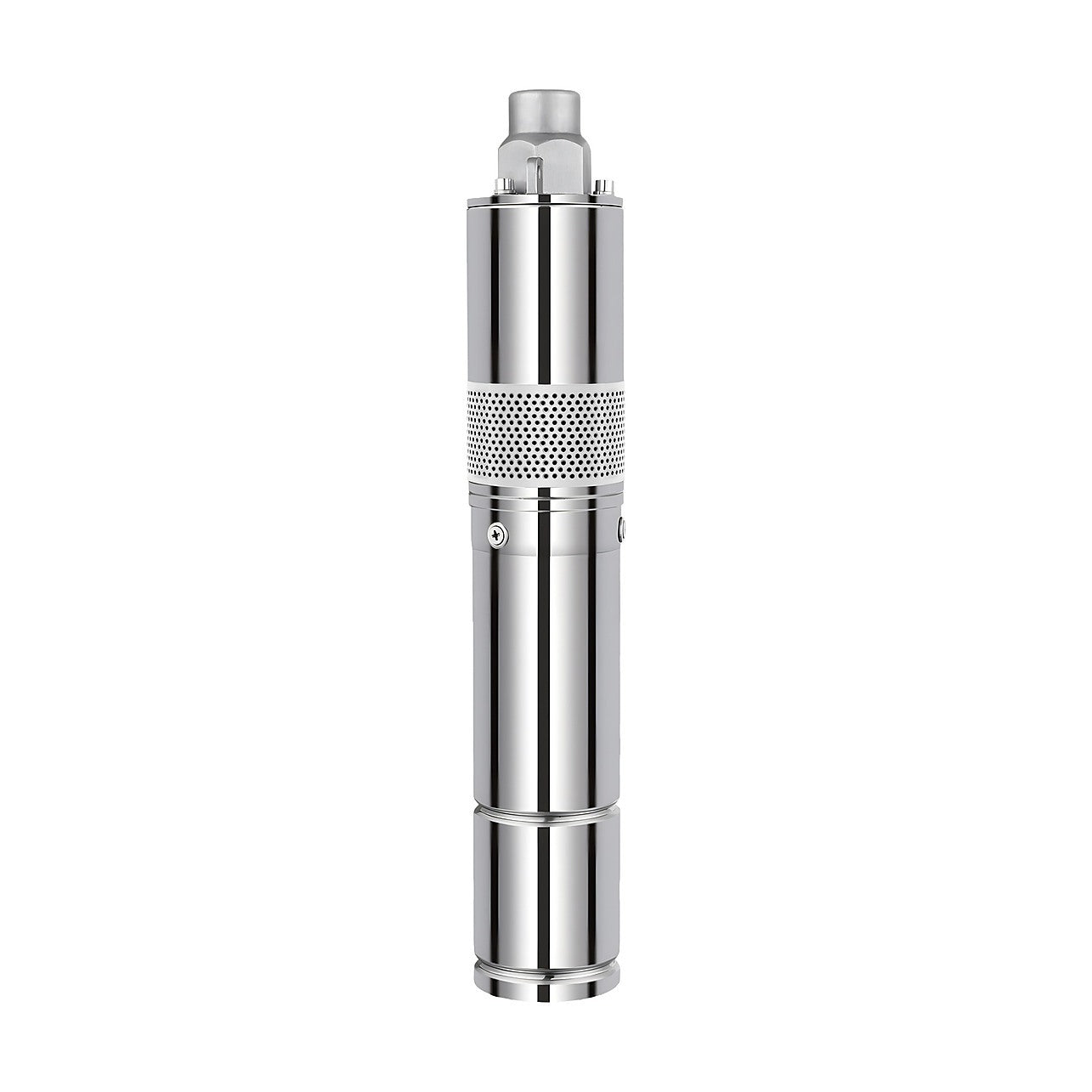

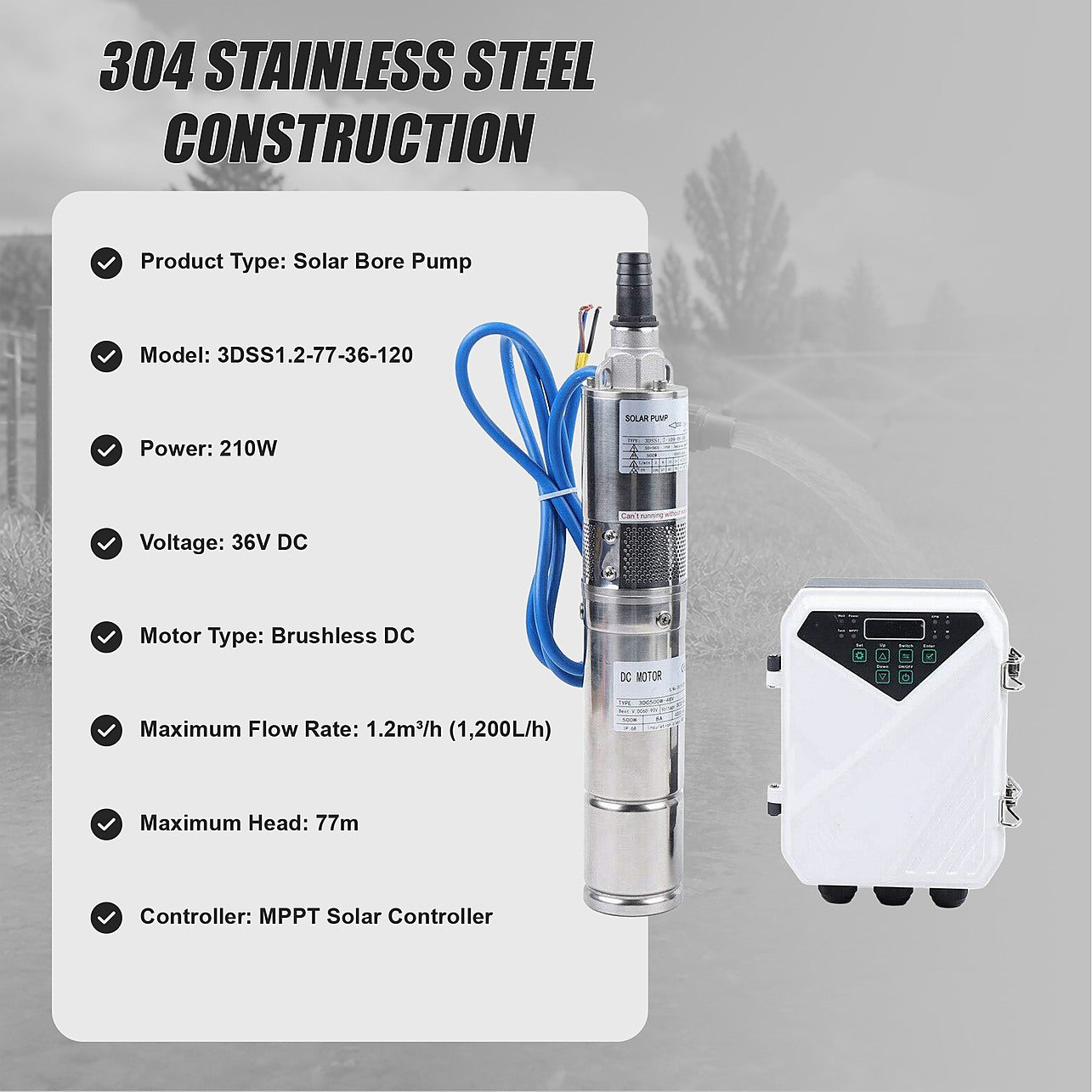

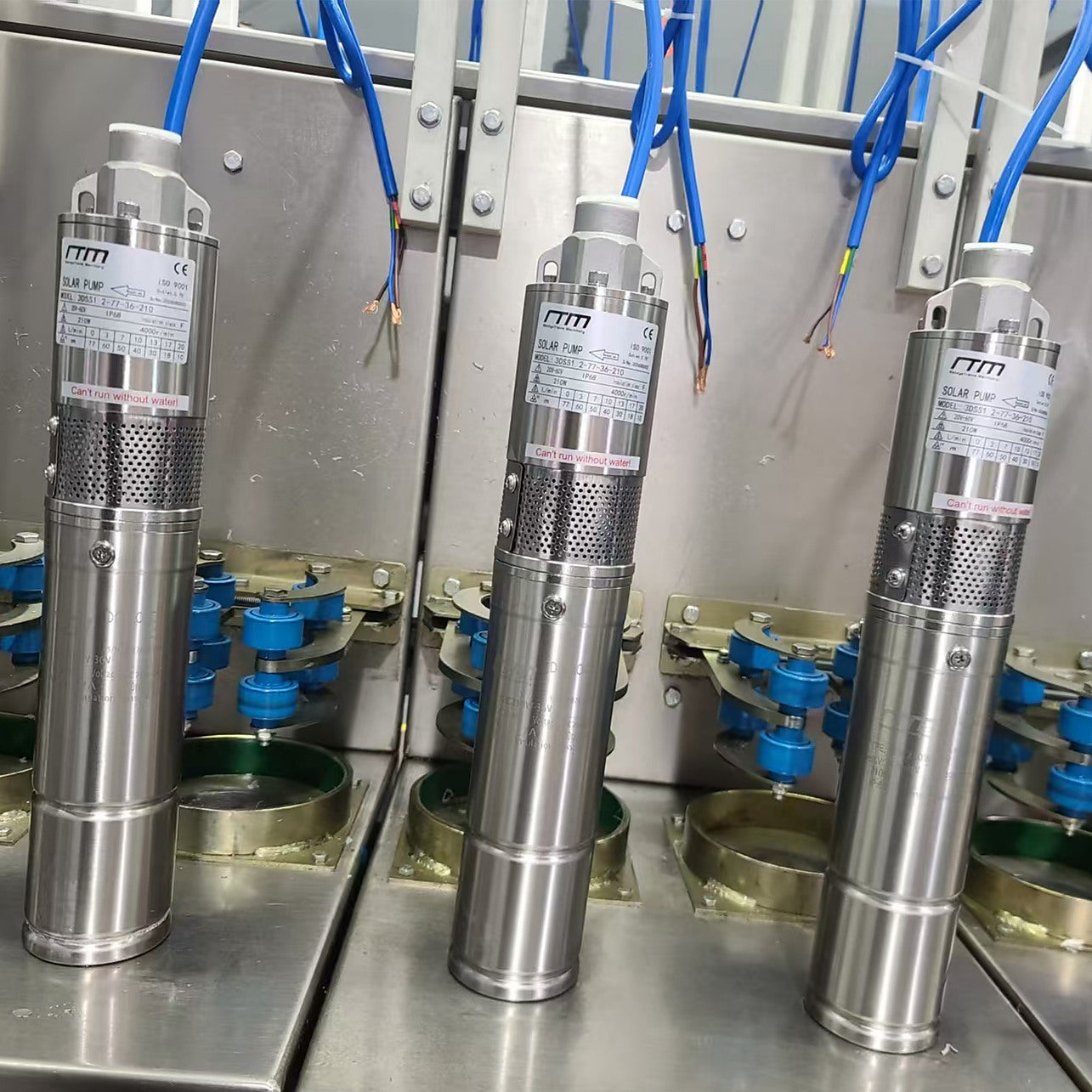

304 Stainless Steel Construction
Corrosion-resistant housing designed for long-term use in bore and well environments. -
30m Waterproof Power Cable
Supplied with a factory-fitted waterproof submersible cable for convenient installation. -
LED Digital Display
Displays operating information including voltage, current and motor speed. -
Mechanical Seal Protection
Designed to help minimise the entry of sand and other particles into the motor assembly.
Specifications:
- Product Type: Solar Bore Pump
- Model: 3DSS1.2-77-36-120
- Power: 210W
- Voltage: 36V DC
- Motor Type: Brushless DC
- Maximum Flow Rate: 1.2m³/h (1,200L/h)
- Maximum Head: 77m
- Maximum Water Temperature: 35°C
- Outlet Diameter: 19mm
- Pump Material: 304 Stainless Steel
- Controller: MPPT Solar Controller
- Display: LED Digital Screen
- Protection: Mechanical Seal
- Power Cable: 30m Waterproof Submersible Cable
- Maximum Open Circuit Voltage: <60V
- Assembly Required: Yes (Installation Required)

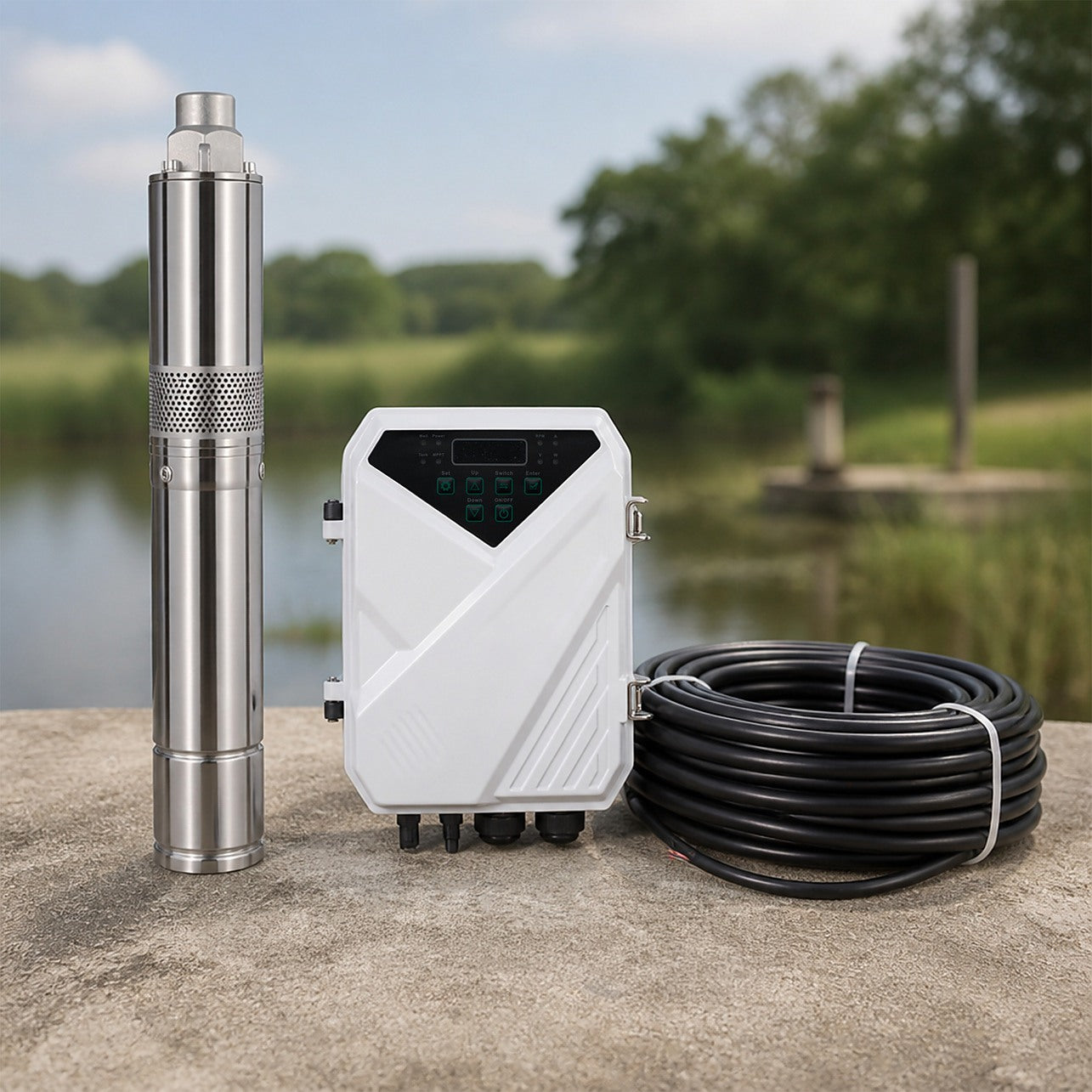

Package Includes:

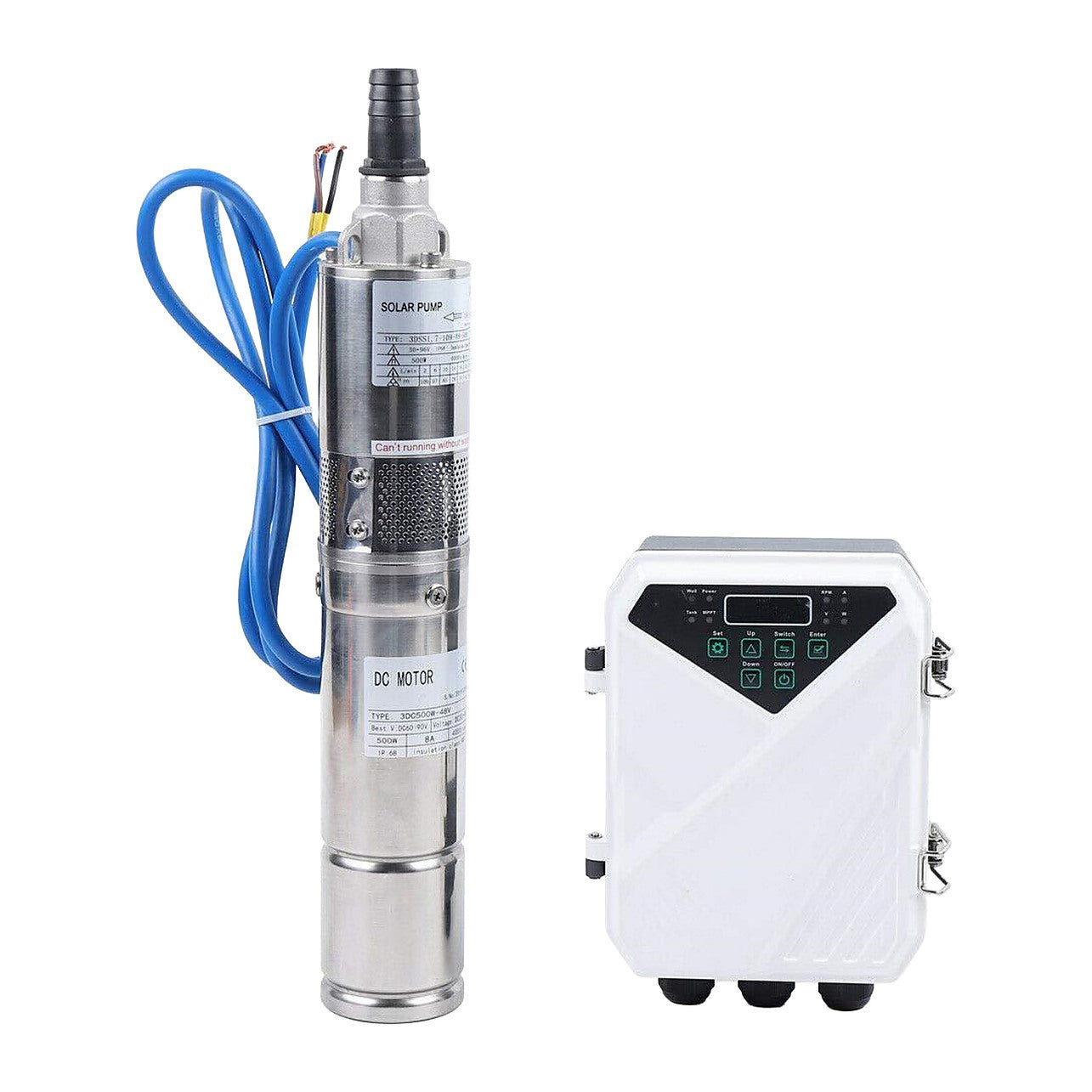

- 1 × 210W Solar Bore Pump
- 1 × MPPT Solar Controller
- 1 × 30m Waterproof Power Cable
- Installation Accessories
Not Included:
- Solar Panels
- Stainless Steel Safety Cable
- Poly Pipe
- Additional Electrical Wiring
- Float Switch (Required for dam or river applications)

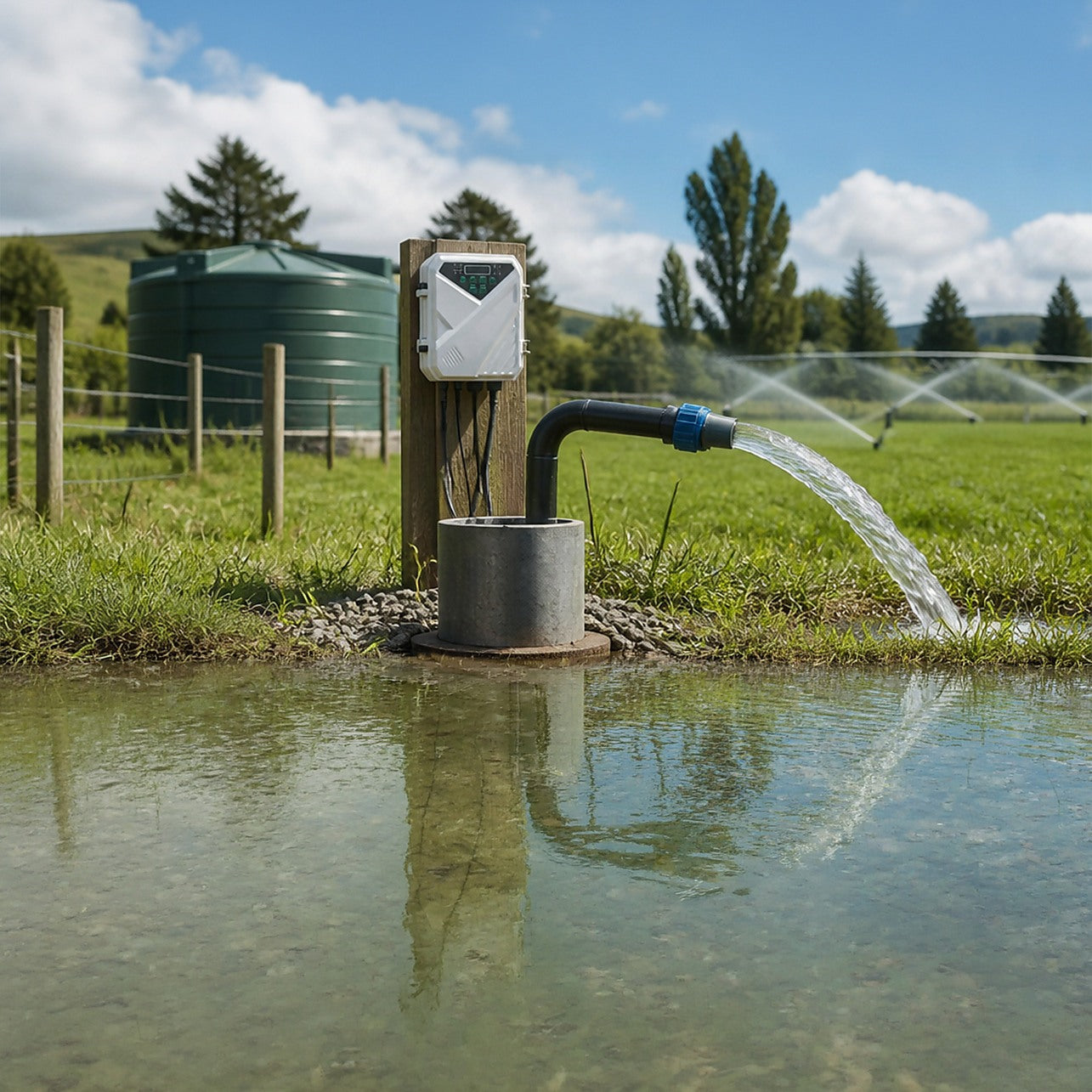

Ideal For:
- Bore Water Supply
- Garden Irrigation
- Farm Irrigation
- Livestock Watering
- Remote Properties
- Off-Grid Systems
- Water Transfer
- Rural Homes
Please Note: Solar panels are not included.
