Retractable Awnings for Patios, Decks & Outdoor Areas

How Retractable Awnings Work

The core mechanism of a folding arm retractable awning is the articulated arm — a spring-loaded, hinged arm that extends the awning fabric outward from the wall and holds it taut under tension. Because the arms carry their own load, no support posts are needed, leaving the space underneath completely clear. This is the defining feature that separates folding arm awnings from pergolas, gazebos and fixed canopy structures.

When retracted, the arms fold flat against the wall and the fabric rolls back onto the roller tube. On open-roll models the tube remains visible; on cassette models it disappears inside an aluminium housing that closes flush against the building. Either way, the footprint when closed is minimal — typically 300–400mm of depth from the wall face — making them suitable for installations where visual impact when stored matters.

The roller tube is driven either by a manual crank handle or, in motorised models, by a tubular motor. Manual crank operation is straightforward and has no electrical components to maintain. For wider awnings — generally 4m and above — motorised operation becomes increasingly practical from a day-to-day convenience standpoint, and allows wind and sun sensors to be integrated for automated operation. All motorised options are in the Motorised Awnings collection.

Awning Types: Folding Arm vs Pivot Arm

Folding arm awnings are the dominant choice for patios, decks, alfresco areas and outdoor dining spaces. They extend outward on articulated arms and can span widths from around 2m up to 7m in commercial-grade models, with projections typically between 1.6m and 4m. The absence of support posts makes them ideal for any outdoor area where clear floor space is the priority.

Pivot arm window awnings (also called drop-arm awnings) work differently — they mount above a window and extend the fabric downward on fixed pivot arms rather than outward on folding arms. They're designed for shade at individual windows, doors and narrow openings rather than broad outdoor coverage. Where a folding arm awning shades the space in front of a building, a pivot arm awning shades the glass and the immediate area directly in front of a window.

Both types are available in manual operation. The choice comes down to your installation: full outdoor entertaining area coverage means a folding arm awning; window-by-window shade control is the pivot arm's territory.

Cassette vs Open-Roll: What's the Difference

This is the most practical design decision after choosing awning type.

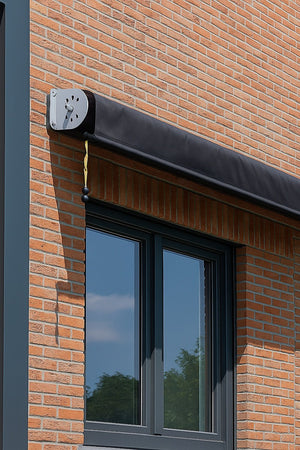

Open-roll awnings leave the roller tube and fabric exposed when the awning is retracted. The mechanism is visible, accessible for service, and generally more affordable. They suit sheltered positions — under a soffit, beneath an existing pergola or in a spot protected from prevailing weather — where the stored awning won't face direct sun, rain, and debris accumulation when closed.

Semi-cassette awnings enclose the top half of the roller tube and mechanism in an aluminium housing. The fabric is partially protected when retracted. They offer a neater appearance than open-roll while costing less than a full cassette, and suit intermediate exposure positions.

Full cassette awnings enclose the entire mechanism — roller tube, fabric, and arms — inside a sealed aluminium housing when retracted. When closed, only the cassette box is visible, which can be colour-matched to the building facade. Full cassette protection extends fabric life significantly in exposed positions because the fabric isn't sitting in direct sunlight when rolled up. This matters particularly in north and west-facing installations where the stored awning would otherwise receive full sun exposure throughout the day.

For most exposed Australian installations — where the awning faces the sky directly when retracted — a cassette design is the better long-term investment.

Awning Fabric: What to Look For

The frame determines the awning's structural performance. The fabric determines how long it looks good and how well it does its job.

Polyester fabric is the more affordable option. It's water-resistant, UV-treated and suitable for general shade use. The coating on polyester is applied to the surface rather than woven into the fibre, which means it can degrade faster under sustained Australian UV exposure and may need replacement sooner than acrylic alternatives. It remains a practical choice for budget-conscious buyers and partially sheltered installations.

Solution-dyed acrylic fabric is the higher-performance option and the material used in most quality folding arm awnings. In solution-dyeing, the colour is added to the raw fibre before weaving rather than applied as a surface coating. This means the colour runs through the entire thread — UV exposure doesn't fade the surface because there is no surface coating to degrade. Quality acrylic awning fabrics carry warranties of 5–10 years against UV colour fade, compared to typically 2–3 years for coated polyester. Acrylic is also naturally breathable, which reduces heat build-up beneath the awning compared to solid PVC fabrics.

PVC and waterproof fabrics sacrifice breathability for water resistance. They suit applications where rain protection is the priority alongside sun shade — though for full rain protection, a fixed canopy or pergola roofing solution is the more appropriate product category.

Regardless of fabric type, UV protection rating matters. Quality awning fabrics block 90–98% of UV radiation — a critical specification in a country with some of the world's highest UV index readings. Acrylic fabrics treatments typically achieve UPF 50+ ratings, providing effective protection for both outdoor furniture and people using the space.

Frame Materials and Construction

Retractable awning frames are almost universally aluminium — specifically powder-coated extruded aluminium for the main structural components. Powder coating over aluminium gives you corrosion resistance, colour stability and the structural strength needed to support the fabric under wind load without the weight penalty of steel construction.

The arm mechanism is where quality differences become most apparent. Higher-quality awnings use chromatised aluminium arms with die-cast joints and stainless steel or PVC-coated steel cables inside the arm structure that maintain spring tension over time. Lower-cost awnings may use thinner-walled extrusions and simpler cable systems that can lose tension after several years of use, causing the fabric to sag rather than remain taut when extended.

For coastal Australian installations — anywhere within roughly 5km of the ocean — check that fixings and brackets are stainless steel or hot-dip galvanised steel rather than standard zinc-plated hardware. Salt air degrades standard zinc coatings over 2–3 years, while stainless and hot-dip galvanised fixings remain stable for the life of the awning.

Getting the Size Right

Measure carefully before selecting an awning. Two dimensions control everything:

Width is the span of the awning along the wall face. Measure the full area you want to shade, not just the opening. Standard residential patios are typically covered by awnings in the 3m–5m width range, though individual product widths vary — check the specific model's available sizes before purchasing.

Projection is how far the awning extends outward from the wall when fully deployed. A 2.5m projection shades an area 2.5m deep in front of the mounting wall. For a standard patio table and seating arrangement, projections of 2.5m–3.5m are typical. Deeper projections provide more coverage but add weight to the mounting wall and require greater mounting height to maintain usable headroom underneath — most installers recommend a minimum of 2.2m clear height beneath the extended awning at the front rail.

Allow 300–400mm of clear wall height above the top bracket for the roller tube and cassette housing. If gutters, downpipes or eaves limit this clearance, confirm measurements before ordering.

Installation: What You Need to Know

Most folding arm awnings in this range are designed for DIY installation and ship with clear installation guides. The critical factor is the mounting surface.

Brick or masonry walls are the preferred substrate. Chemical or mechanical masonry anchors provide the fixing strength required for the combined weight and wind load of the awning, and are suitable for all widths and projections.

Timber-framed walls (clad in Colorbond, weatherboard or similar) require fixing into structural timber studs — not just the external cladding. Wider awnings with longer projections require multiple fixing points into studs, which means locating the studs before finalising the bracket position. For heavier or wider models on lightweight wall construction, a structural timber nogging installed between studs behind the cladding provides a reliable continuous fixing surface.

Fascia and soffit mounting is possible on some models but reduces the load capacity and requires verification against the specific awning's installation requirements.

If you're fixing to a surface that isn't masonry, and the awning is on the larger end of the range, professional installation is the conservative choice.

Energy Efficiency and Indoor Temperature

An awning's effect on indoor temperature is real and measurable. Folding arm awnings deployed over north and west-facing windows and sliding door openings intercept direct solar radiation before it reaches the glass. Research by various Australian housing bodies has shown that external shade — which blocks heat before it enters the glass — is significantly more effective than internal blinds or curtains, which allow solar radiation through the glass before attempting to reflect or absorb it.

In practical terms, a well-positioned retractable awning over a west-facing alfresco opening can noticeably reduce afternoon heat load in adjacent indoor rooms, reducing the running time and energy cost of air conditioning. U Blinds Australia has cited figures of up to 50% energy bill reduction when external awnings are combined with indoor blinds — a figure that depends heavily on the specific installation, but directionally illustrates the potential.

The retractable design adds a layer of seasonal flexibility that fixed awnings don't have: extend for shade in summer, retract in winter to allow low-angle sun to warm the same space passively.

Pitch Control

Most quality folding arm awnings allow the pitch — the angle at which the fabric is set when extended — to be adjusted, typically between 5 and 30 degrees from horizontal. Higher pitch angles shed light rain from the fabric surface and direct water to the outer edge rather than pooling. Lower pitch angles maximise coverage area at the expense of rain shedding.

Some models allow pitch to be adjusted by the user with a crank; others are set at installation. If rain shedding is a priority for your installation, look for models with adjustable pitch control and confirm the adjustment method before purchasing.

Maintenance

Routine maintenance is straightforward and takes 20–30 minutes once a season:

Brush loose debris off the fabric before wetting it — grit particles embedded in wet fabric can abrade the surface during cleaning. Use warm water and a mild soap solution with a soft brush, working along the fabric weave rather than across it. Rinse thoroughly and allow the awning to dry in the extended position before retracting — rolling up damp fabric is the leading cause of mould and mildew growth on awning material.

For the frame and arm mechanism, wipe down with a damp cloth and inspect the arm pivot points for smooth operation. A light application of silicone spray — not oil-based lubricant — on pivot points once a year keeps the mechanism moving freely. Avoid WD-40 and similar petroleum-based products on plastic components.

During extended periods of non-use (winter months, long holidays), store the awning fully retracted. If the awning is a full cassette model, this requires no additional action. Open-roll models benefit from a fabric cover over the rolled fabric if the awning will be stored for more than a few weeks.

During storms or high winds, retract the awning. Quality awnings are rated to wind class standards (typically EN13561 Wind Class 2, corresponding to around 37 km/h sustained wind), but these ratings are for intermittent gusts, not sustained high-wind conditions. Retracting early protects both the fabric and the arm mechanism.

Who Retractable Awnings Are Suited For

Retractable awnings suit any homeowner wanting flexible shade over an outdoor entertaining area, deck or balcony without committing to a permanent structure. They work particularly well for:

Patios and alfresco areas where full overhead coverage without posts is needed. Decks and balconies where a fixed roof would require engineering approval or affect natural light to adjacent rooms. Window and door openings where seasonal shade control reduces summer heat gain. Rental properties and investment properties where a mid-cost shade improvement adds genuine usable outdoor area without the expense and permanence of a pergola or patio roof.

Commercial applications — café seating areas, restaurant outdoor dining, retail entries — are also well served by folding arm awnings, particularly wider models with full cassette protection and motorised operation.
